CO2 Laser cutting machine
CO2 Laser cutting and engraving machine can work with most materials, such as Cloth, leather, wool, acrylic, plexiglass, board, plastic, rubber, crystal, ceramic tile, bamboo product, jade, granite, marble, resin and other non-metal materials.
Price from $2,000 to $8,000
Features
CO2 lasers have very high conversion efficiency and are widely used in light industry. It is clean, safe and pollution-free.
01
Unique upper flue system that sucks away the smoke
02
Whole machine is equipped with leakage overload protector
03
Independent laser power supply to avoid high voltage interference
04
Filament optical frame, the light path is more stable
Parameters
| Description | JW1325-P |
| Working Area | 1300*2500 mm |
| Working Voltage | AC 220V±10%，50HZ |
| Control System | Ruida controller |
| Driver | Leadshine stepper |
| Machine table | Blade table、Honeycomb table（Optional） |
| Laser type | Glass Inner Cavity Sealed CO2 Laser Wavelength 10.6μm |
| Energy regulation | Pure circulating water cooling |
| energy regulation | 0-100% stepless control, 0-100% adjustable within the software |
| Minimum Formed Words | ≤±0.05mm |
| Engraving speed | 0 -1200mm/s |
| Cutting speed | 0 - 600mm/s |
| Minimum Formed Words | English word 1mm |
| Working environment | Temperature: 0-45C, Humidity 5-95%(No Condensate Water) |
| Total power | ＜5KW |
| Graphic format supported | BMP, JGP, PNG, DXF, etc. |
CUTTING CAPACITY
| Power | Acrylic | Wood | MDF |
| 80 W | 10mm | 10mm | 5mm |
| 100 W | 15mm | 13mm | 7mm |
| 150 W | 20mm | 18mm | 10mm |
| 180 W | 22mm | 20mm | 12mm |
| 300 W | 30mm | 30mm | 18mm |
Floor Plan
Machine Details
Reci laser tube
01 Beam quality TEM00 mode more than 95%; 02 Advantages of optical resonant cavity to improve product power; 03 The world's most advanced nuclear radioactive material coated lens; 04 Laser tube metal head and glass direct sintering process.

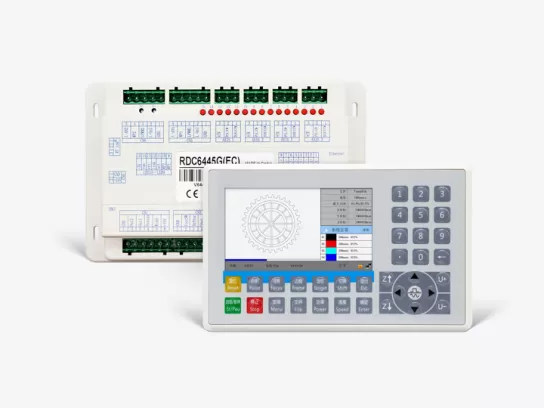

Ruida controller
The most recent DSP control system, USB interface, LCD screen, and the board as a whole have better ability to resist high voltage and anti-static interference.
Lens holder
We use the thin wire optical frame made of pure copper, which is not easy to change light, makes the optical path more stable, can fix the mirror wire, and has the effect of cooling the lens quickly.
Copper synchronous gear
The synchronous gear is made of pure copper, which has the characteristics of wear resistance and corrosion resistance.
The installation of motors
Our company's motor is installed vertically. There is only one resonance point can reduce the vibration and improve cutting effect.

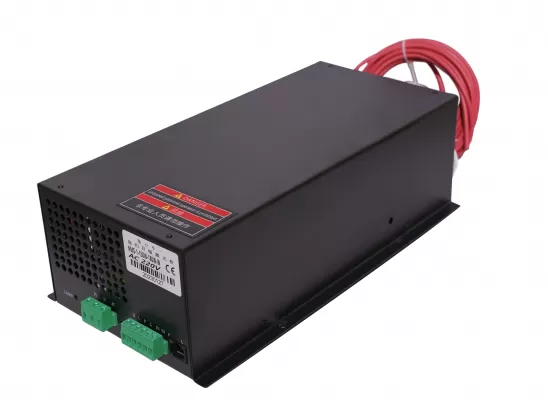

Laser power supply
We provide a stabilized laser power supply to continuously supply power to the laser tube, making the voltage more stable, the optical path more stable, and with the cutting effect good.
Machine bed
Heavy duty body, square tube welding, and with precision milling process，all above are ensure the stability when working and make perfect cutting effect and cutting accuracy.
Upper smoking system
With upper smoking system can highly improve the smoking effect.
Industry Applications
3D MDF eagle
Acrylic LOGO cutting
Wood mickey mouse
bingdundun
